Ladder Type Cable Tray & Accesories

At Parmaar Metals Pvt. Ltd., we manufacture and supply premium-quality Ladder Type Cable Trays designed for reliable, long-lasting, and efficient cable management. Built to support heavy-duty electrical and communication cables, our ladder trays are ideal for industrial, commercial, & infrastructure applications where strength, ventilation, and safety are essential.

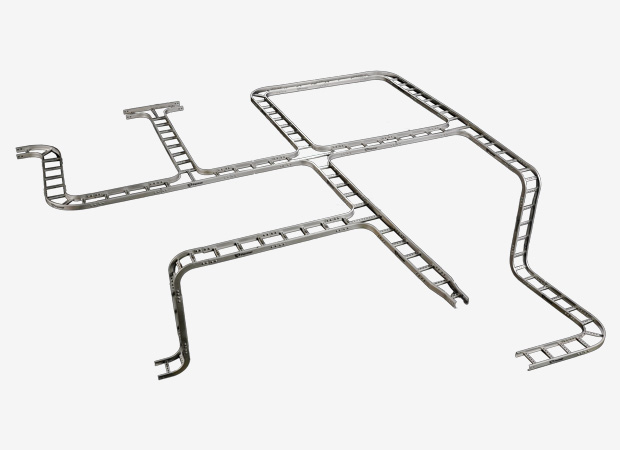

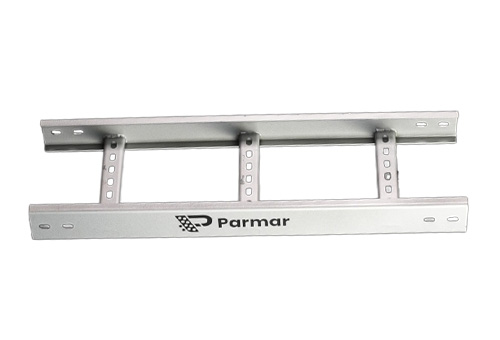

Each tray features a robust ladder-style framework consisting of two longitudinal side rails connected by evenly spaced rungs, allowing easy cable placement and excellent heat dissipation. Available in a variety of materials, finishes, and sizes, these trays offer maximum versatility and performance for all types of electrical installations.

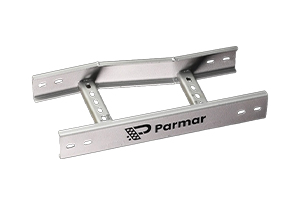

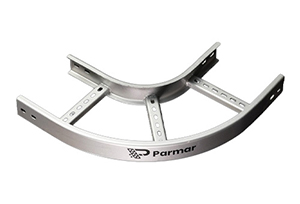

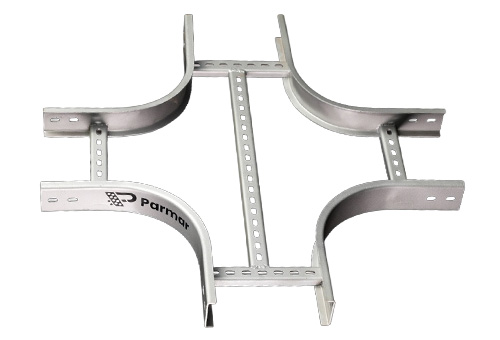

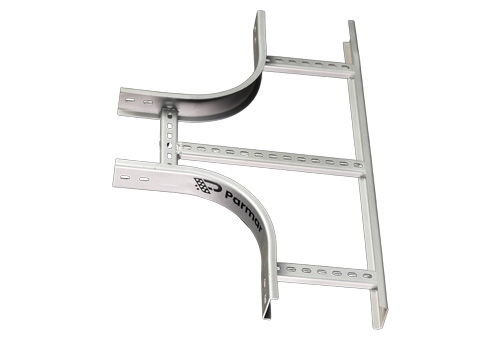

Accessories Available

All accessories are designed for easy installation, structural integrity, and system continuity.

Technical Specifications

Category Specification Details
Material & Construction Steel (Mild / Structural Steel): Roll-formed from high-strength steel sections.

Available finishes: Hot-Dip Galvanized (after fabrication), Electro-Galvanized, Powder Coated, or Pre-Galvanized.

Aluminum: Lightweight & corrosion-resistant, ideal for applications requiring non-magnetic or lighter support structures.

Stainless Steel (Optional): For chemical or corrosive environments, SS 304 / SS 316 material available.
Rung & Side-Rail Design Rung Spacing: Standard options include 150 mm, 200 mm, 250 mm, and 300 mm.

Side Rail Height / Depth: Available in multiple heights to match load requirements and cable bundle dimensions.

Slotted Rails / Knockouts: Side rails can be slotted or pre-punched for splicing, mounting, or tapping – minimizing installation labour.

Snap-in Splice / Connector Option: Optional splice plates or connectors designed for quick, tool-free assembly.
Finishes & Protection Hot-Dip Galvanized: Provides superior corrosion resistance in outdoor or industrial environments.

Electro-Galvanized / Pre-Galvanized: Suitable for indoor or moderately corrosive conditions.

Powder Coated / Painted: Enhances appearance and adds an extra layer of chemical protection.

Stainless Steel / Aluminum: Naturally corrosion-resistant materials for high-performance and long-life applications.

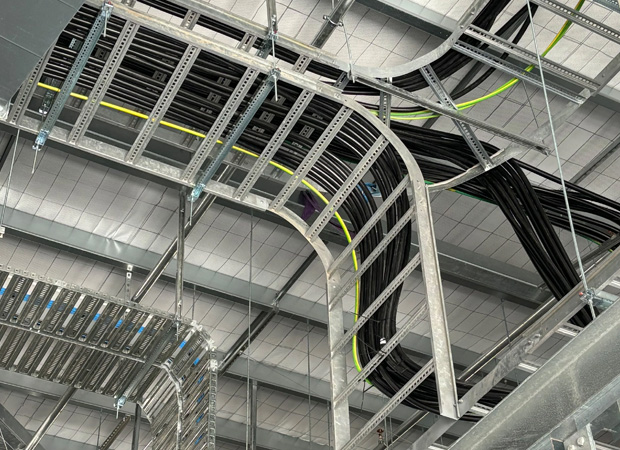

Applications

Ladder Type Cable Trays from Parmar Metals are ideal for:

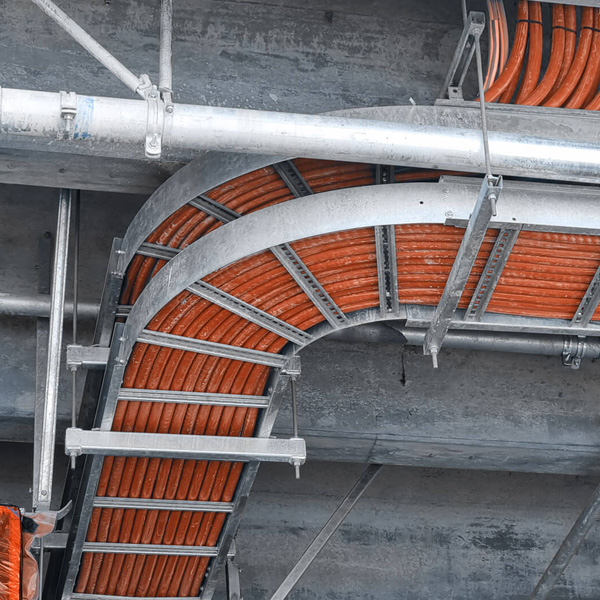

Benefits & Advantages

Excellent Airflow & Heat Dissipation

The open ladder structure enables natural convection cooling, reducing cable overheating.

Reduced Material & Weight

Optimized design ensures strength with minimal material.

Strong Load Capacity

Robust side rails & rung design support heavy cable loads.

Easy Cable Access & Maintenance

Cables can be laid from top or bottom, & future modifications are simplified.

Customizability

Sizes, finishes, splice systems, accessories (elbows, tees, reducers) can be tailored.

Reduced Installation Time

Features like slotted rails, snap splices, and pre-punched holes reduce field labour.

Standard Size Chart

Width (mm) Side Rail
Height (mm)
Thickness
(mm)
Standard
Length (mtr)
Rung
Spacing (mm)
Material
Options
Finish
Available
100 50 / 75 1.6 – 2.0 2.5 / 3.0 150 – 250 Steel / Aluminum / SS HDG / EG / Powder Coated
150 50 / 75 1.6 – 2.0 2.5 / 3.0 150 – 250 Steel / Aluminum / SS HDG / EG / Powder Coated
300 75 / 100 2.0 – 2.5 2.5 / 3.0 200 – 300 Steel / Aluminum / SS HDG / EG / Powder Coated
450 100 / 125 2.0 – 2.5 2.5 / 3.0 200 – 300 Steel / Aluminum / SS HDG / EG / Powder Coated
600 100 / 125 2.5 – 3.0 2.5 / 3.0 250 – 300 Steel / Aluminum / SS HDG / EG / Powder Coated
750 125 / 150 2.5 – 3.0 2.5 / 3.0 250 – 300 Steel / Aluminum / SS HDG / EG / Powder Coated
1000 150 / 200 3.0 2.5 / 3.0 300 Steel / Aluminum / SS HDG / EG / Powder Coated
1200 150 / 200 3.0 2.5 / 3.0 300 Steel / Aluminum / SS HDG / EG / Powder Coated

Why Choose Parmar Metals Pvt. Ltd.?

Proven Expertise

Proven Expertise

Years of experience in precision metal fabrication & cable management systems.
In-House Manufacturing

In-House Manufacturing

Ensures consistent quality, durability, and quick turnaround.
Custom Engineering

Custom Engineering

Tailored solutions for diverse industrial and commercial projects.
Quality Assurance

Quality Assurance

Every product is tested for load capacity, finish, and dimensional accuracy.
Reliable Support

Reliable Support

From design to delivery, our team ensures project success and satisfaction.

Looking for Reliable Ladder Type Cable Tray & Accesories Solutions?

Explore our complete range of Ladder Type Cable Tray & Accesories.

Partner with Parmar Metals Pvt. Ltd. to strengthen your infrastructure with precision-engineered solutions.
